267 MAX ERV

SPECIFICATIONS

MODEL:267 MAX ERVVOLTAGE:120 VFREQUENCY:60 HzPHASE:N/ACURRENT:4.5 AAIRFLOW HIGH:278 CFMWEIGHT:57 lbDRAIN:OptionalWARRANTY:Units carry a 5 year warranty on the enthalpic (ERV) core and a 5 year replacement parts warranty

LIFEBREATH

267 MAX ERV

Energy Recovery Ventilator

  • 278 CFM @ .3″ w.g / 77% (SRE) at 64 CFM and 0°C (32°F)
  • AUTO BALANCING
  • DXPL03 Digital Wall Control included, for easy programmability
  • Damper recirculating defrost cycle
  • Top port 6” oval duct
  • Square ERV core
  • High efficiency EC motors
  • -25°C HVI Cold Weather Certified

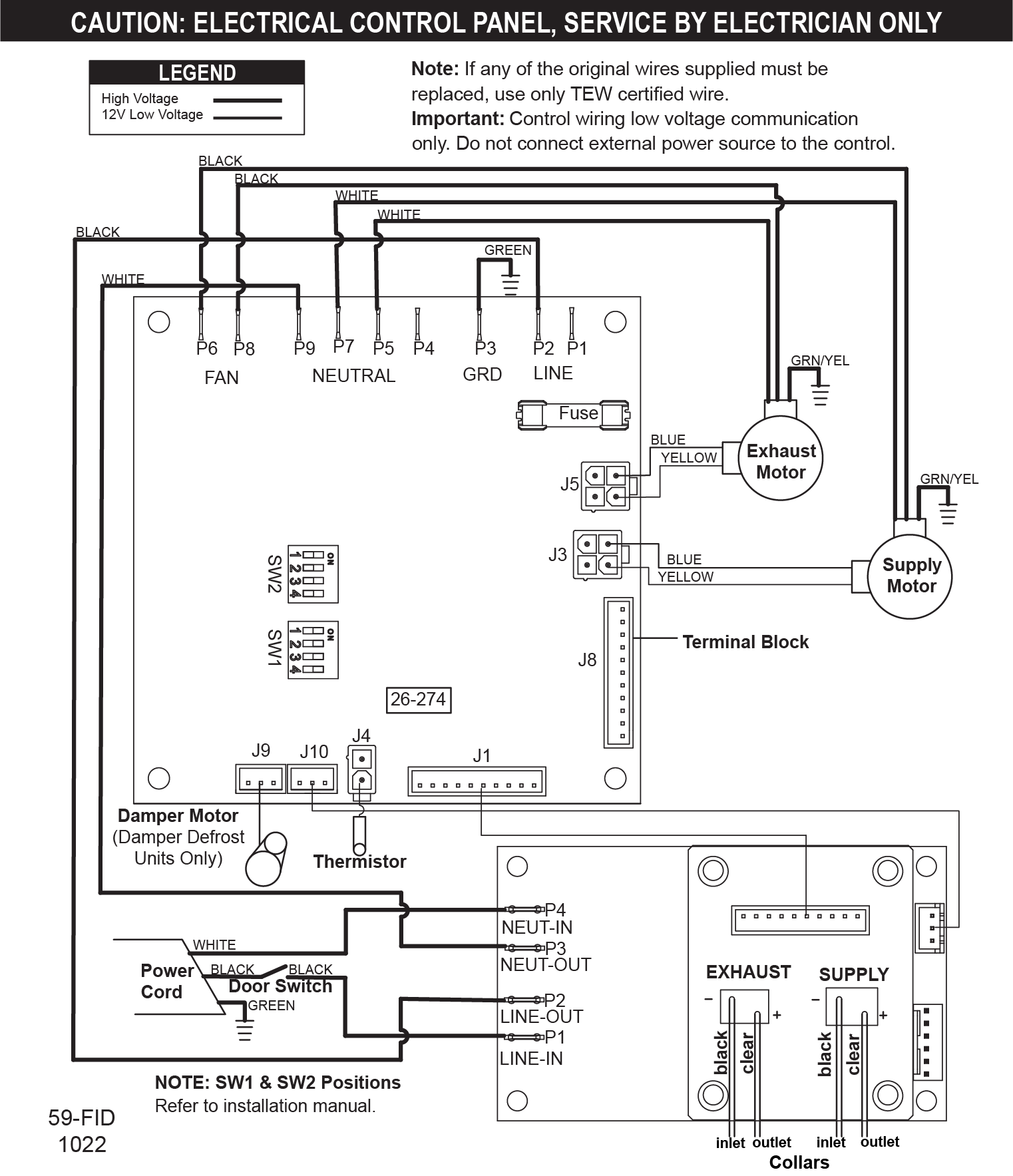

  • Title 24 Compliant. A FID enabled ERV is capable of displaying error codes for certain types of faults which impact operation of the system. FID Version Only
