SPECIFICATIONS
MODEL:METRO 120 ERV-ECMVOLTAGE:120 VFREQUENCY:60 HzPHASE:N/ACURRENT:1.4 AAIRFLOW HIGH:117 CFMWEIGHT:34 lbDRAIN:NoWARRANTY:
Units carry a 5 year warranty on the ERV core and a 5 year replacement parts warranty
LIFEBREATH
METRO 120 ERV-ECM
Energy Recovery Ventilator
- 117 CFM @ .3″ w.g / 72% (SRE) at 49 CFM and 0°C (32°F)
- Designed for high-rise condos, apartments and townhomes with limited mechanical space
- High efficiency ECM motors
- Low profile, fits in bulkhead and drop ceilings, slim height 9.75”
- Flexible CFM operational range
- Brackets included for easy installation
- No drains required
- Removable motor and electronic assembly for easy maintenance and service
- Convenient hinged door – no screws

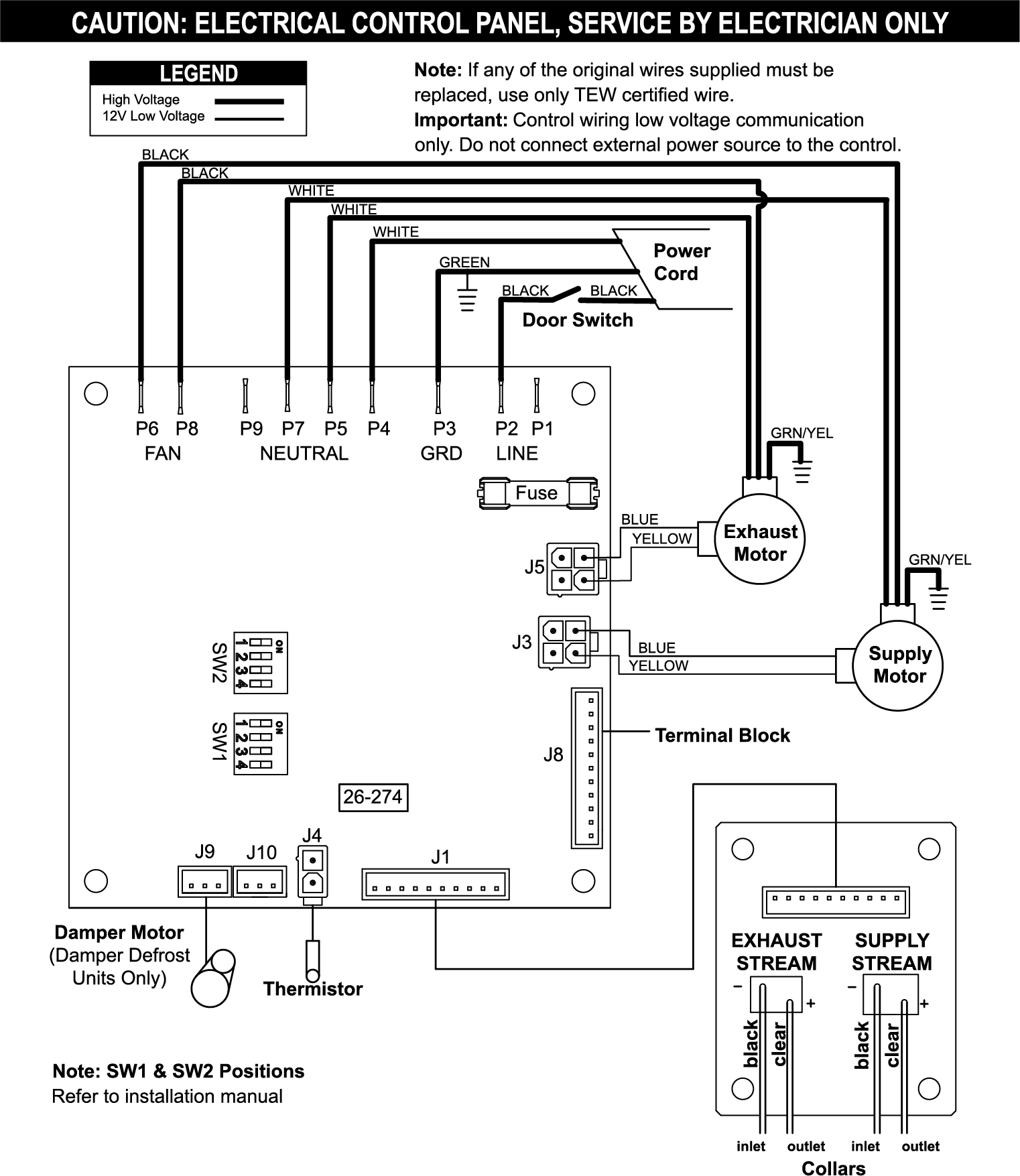

- Hardwired, Auto Balance, and Fault Indicator Display configurations available

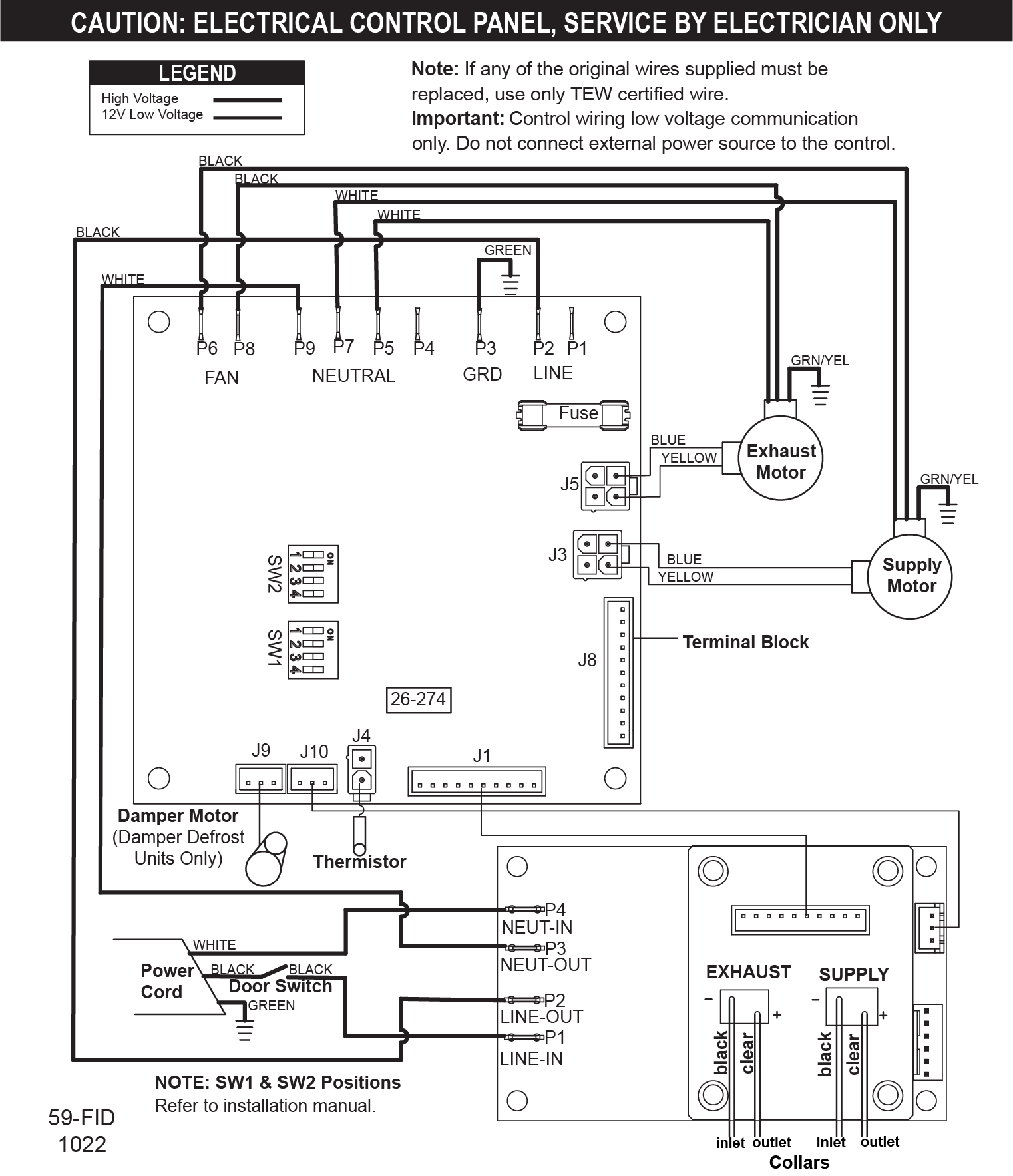

- Title 24 Compliant. A FID enabled ERV is capable of displaying error codes for certain types of faults which impact operation of the system. FID Version Only
DOWNLOADS
SPECIFICATIONS
MODEL:METRO 120 ERV-ECMVOLTAGE:120 VFREQUENCY:60 HzPHASE:N/ACURRENT:1.4 AAIRFLOW HIGH:117 CFMWEIGHT:34 lbDRAIN:NoWARRANTY:
Units carry a 5 year warranty on the ERV core and a 5 year replacement parts warranty
